Product Group 100

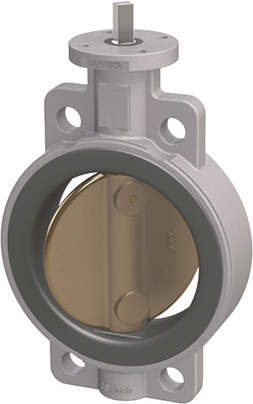

Description Centric bonded rubber liner butterfly valves
Size range DN 50 up to and including DN 600
Pressure classes DIN PN 6, 10, 16, 25
ANSI class 150
Liner Materials NBR, EPDM, FPM
Body Materials Cast Iron, Nodular Cast Iron, Cast Steel, Cast Stainless Steel, Cast Aluminium Bronze, Cast Aluminium
Disc Materials Nodular Cast Iron (Rilsan), Aluminium Bronze, Stainless Steel, Duplex, Monel K400
Working pressure Vacuum to 25 barg
Working temp. -20 to +200°C
Operation ISO 5211 top flange for direct mount of, Hand lever, Gearbox, Pneumatic actuator, Electric actuator and Hydraulic actuator

Available Series
