Product Group 300

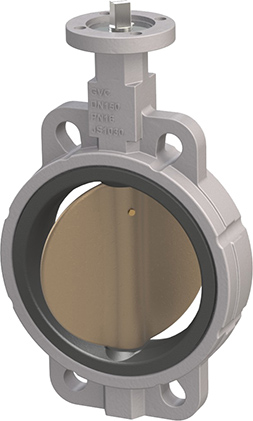

| Description | Centric Cassette type rubber liner butterfly valves |
|---|---|
| Size range | DN 50 up to and including DN 1200 (2” – 48”) |
| Pressure classes | DIN PN 10, 16 ANSI class 150 JIS 10K, 16K |
| Liner Materials | NBR, EPDM (Others on request) |
| Body Materials | Cast Iron, Nodular Cast Iron, Cast Steel, Cast Stainless Steel, Cast Aluminium Bronze (Others on request) |
| Disc Materials | Nodular Cast Iron Nickel plated, Cast Steel, Cast Stainless Steel, Cast Aluminium Bronze (Others on request) |
| Working pressure | 0 to 16 barg |
| Working temp. | -20 to +135°C |
| Operation | ISO 5211 top flange for direct mount of, Hand lever, Gearbox, Pneumatic actuator, Electric actuator and Hydraulic actuator |
