Product Group 500

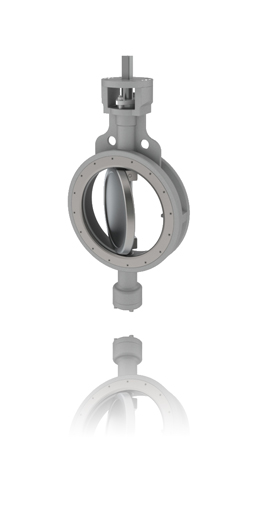

| Description | Double Eccentric High Performance butterfly valves |
|---|---|
| Size range | DN 50 up to and including DN 1500 (2” – 60”) |
| Pressure classes | DIN PN 10, 16, 25 ANSI class 150, 300 JIS 5K, 10K, 16K, 20K |
| Liner Materials | Soft seated : PTFE, RPTFE, Rubber Fire Safe seated : PTFE/SS, RPTFE/SS (API607 certified) Metal Seated : Stainless Steel(Others on request) |
| Body Materials | Cast Iron, Nodular Cast Iron, Cast Steel, Cast Stainless Steel, Cast Aluminium Bronze, (Super) Duplex, Hastelloy, Monel (Others on request) |
| Disc Materials | Cast Stainless Steel, Cast Steel, Cast Aluminium Bronze, (Super) Duplex, Hastelloy, Monel (Others on request) |
| Working pressure | 0 to 25 barg |
| Working temp. | Soft and Fire Safe seated : -20 to +250°C
Metal Seated : -100 to +400°C |
| Operation | ISO 5211 top flange for direct mount of, Hand lever, Gearbox, Pneumatic actuator, Electric actuator and Hydraulic actuator |
