Product Group AV-T

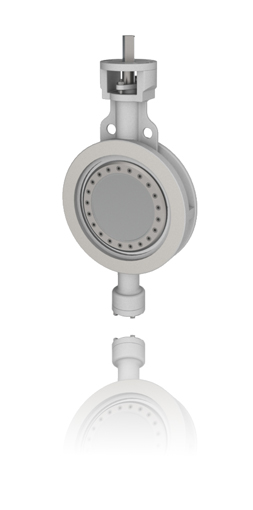

| Description | Tripple Eccentric Metal Seated butterfly valves |
|---|---|
| Size range | DN 50 up to and including DN 2000 (2” – 80”) |
| Pressure classes | DIN PN 10, 16, 25, 40, 63 ANSI class 150, 300, 600, 900 JIS 5K, 10K, 16K, 20K, 30K, 40K, 63K |
| Liner Materials | Laminated Seat : 316 + Graphite laminated Solid Seat : Solid Stainless Steel (Others on request) |
| Body Materials | Carbon Steel, Stainless Steel, Nickel Aluminium Bronze (Others on request) |
| Disc Materials | Carbon Steel, Stainless Steel, Nickel Aluminium Bronze (Others on request) |
| Working pressure | 0 to 153 barg |
| Working temp. | -253°C to +815°C |
| Operation | ISO 5211 top flange for direct mount of, Hand lever, Gearbox, Pneumatic actuator, Electric actuator and Hydraulic actuator |
